Powerful Fan Cooling Water Chiller Model HYAC-20AD for 380V/3P/50Hz Power Supply

Name: Powerful Fan Cooling Water Chiller Model HYAC20AD for 380V3P50Hz Power Supply
Brand: Hypet
Price: 6300 USD

Powerful Fan Cooling Water Chiller Model HYAC-20AD for 380V/3P/50Hz Power Supply Manufactures

Brand Name : Hypet

Model Number : HYAC-20AD Water Chiller

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1set

Price : USD 6300/set

Payment Terms : L/C, T/T

Supply Ability : 50set/month

Delivery Time : 35~45days

Packaging Details : Standard Package for sea shipment

Key parts warranty : 1year

Engineer installation service : Yes

cooling method : Fan cooling

Rotating speed : 46861 r/min

Power Supply : 380V/3P/50Hz

Max Power Consumption : 19.09 kw

Contact Now

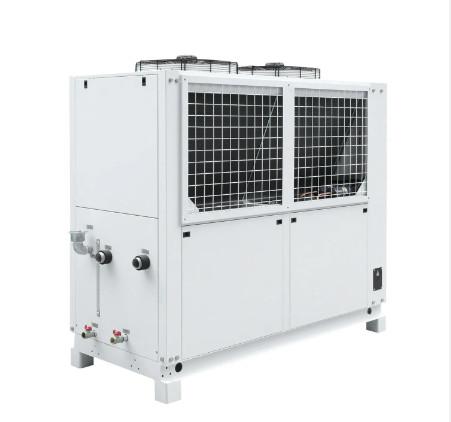

1. HYAC-20AD Water Chiller

Powerful Fan Cooling Water Chiller Model HYAC-20AD for 380V/3P/50Hz Power Supply
2.HYPET Special features

1). This machine selects scroll type fully hermetic compressor and electronic control element, equipped with condenser and evaporator made of high efficiency and high quality copper tube for heat exchange;
2). Equipped with all kinds of safety protection devices, stable performance, low noise, long service life, simple operation; LCD display man-machine interface, easy to operate,operation status at a glance;
3). The model has a single compressor or multiple compressor combined refrigeration system. The compressor can automatically rotate according to the load change, balance the running hours of each compressor, to achieve the effect of saving energy consumption and extending the service life of the chiller. Easy energy regulation, more energy saving at partial load;
4). The machine shell box type structure, beautiful appearance, compact structure, can check the running status at any time; The machine can come with water tank and circulating water pump according to the cooling capacity, no need cooling tower and cooling water pump, easy to install and maintain.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	Industrial Water Chiller HYAC-20AD	1	6300	6300

			Total in EXW

4.Main Specification of the Machine

Item			Specification
Model			HYAC-20AD
Nominal Cooling Capacity	7 ℃	kcal/h	46861
	7 ℃	kw	54.49
	12 ℃	kcal/h	55788
	12 ℃	kw	64.87
Max Power Consumption		kw	19.09
Power Source			3PH 380-415V 50HZ/60HZ
Refrigerant	Type		R22(R407C/R410A/R134A/R404A)
Refrigerant	control		Thermostatic expansion valve
Compressor	Type		Hermetic Scroll
Compressor	Power	kw	7.945 × 2
Condenser	Type		Efficient finned copper tube+high air volume low noise external rotor fan
	Air Volume		23200
	Fan Motor	kw	0.8 × 2
Evaporator	Type		Shell and tube+SS tank or SS coil in SS tank
	Coolant Flow	m³/h	8.84
	Tank Volume	liter	350
	Inlet and Outlet	inch	2
Water pump	Power	kw	1.6
	Flow	m³/h	16
	Head	m	20
Unit Protection Modules			Motor Overload, High&Low Pressure, Chilled Water Over Temperature, Flow switch, Tank Level switch, phase protection, anti-freezing protection
Dimension	Length	mm	2070
	Width	mm	950
	Height	mm	1950
Weight		kg	650
